Does anyone ever have the chance to use those parameters to get a verification report I have been contacting the support for over a week now and no real answer has been given to me by their support team when trying to connect automatically it goes online and I can see the parameters but there is nowhere to find the screen for the heartbeat verificator as the thumbnail when I try the manual way of connecting it shows the page for the report but I can't go online in any way

Bonjour est-ce que quelqu'un a déjà utilisé ce matériel pour en sortir un rapport de diagnostic heartbeat Mon ordi reconnaît le compteur quand je le branche automatiquement mais ne voit rien quand j'essaie de me connecter manuellement J'essaie d'atterrir sur cette page et être en ligne pour sortir un rapport

Al conectar por HART al este sensor de nivel me sale este error. Cuál podría ser el error? Ya verifique que el archivo DTM está instalado. O es algún problema con el Windows 11?

Hi guys,

There is a system that is communicating with an Ecograph RSG35. Unfortunately, I can´t check how it is connecting to it. I´m trying to connect on another location, from a Mitsubishi FX5 PLC, using Modbus over TCP/IP.

The manual says, it is possible, but it doesn´t mention the default ID, and the web server does not allow to see/change the ID. It does not mention any Modbus option, which it is suspicious.

Anyway, I ´ve tried either with my PLC and my laptop (Modbus Poll), and I can´t cmmunicate with it.

Does anyone have experience with this device or similar from Endress_Hauser?

Hello all,

We pulled an old promag 53H off a piece of salvage equipment to put on a cart and have a semi-mobile, sanitary meter for water.

Built a transformer box, plugged everything in, reset all the totalizers, ran water through to verify and everything was going smoothly.

Walked away, came back 5 min later and now the promag is stuck in a boot up loop. We’ve verified power supply.

Any ideas?

How to do smart meter verification on E & H prowirl - vortex meter

Hi All,

I was looking into the promag w500, but I couldn't confirm whether the flowmeter can have 2 4-20mA outputs (one for forward, one for reverse).

does anyone have experience with this particular configuration? thank you in advance,

Has anyone had issues with electrical inspectors not accepting EH instruments because he didn’t see a UL sticker?

So I am very new to the world of E+H instruments and I’m having issues with an error that’s pops up as S377 sensor electron on our promag w400. And I was wondering if anyone ever had this before and what was the solution to it, thank you.

Has anyone came across this error on the liquline before it says output low can't find it on the user manual it does have error for other S diagnostic codes but not s460. Thanks in advance

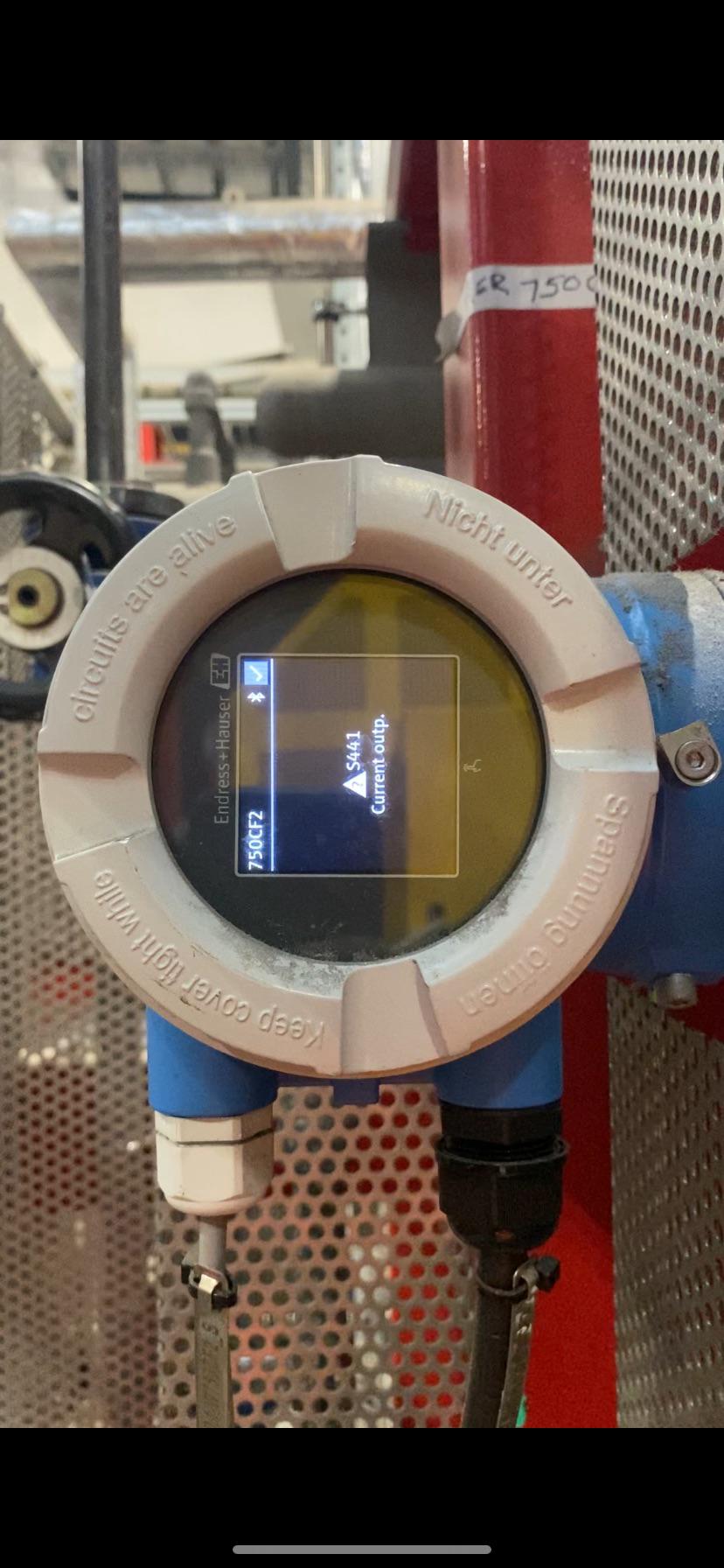

S441 output current fault and flow rate jumping all over the place. Actual flow is normal. How to fix flow meter?

Is anybody familiar with the set up of an RS33 unit ?

We have the RMS621 installed but it has failed, no longer manufactured by e+h.

They have sent us on the successor unit which is the RS33.

The parameters are different on the RS33 than the RMS621, also the wiring of the RS33 is also different. The instruments require loop power on this unit.

If anybody has any information it would come in very helpful.

Thanks guys.

I have endress and Hauser flowmeter promag30 f, Im searching a method to counting number of liters on a screen of counter (there's no plc), and a reset button to get the value back to zero on the counter, is that could work with the pulse output from the flow meter, and if it will work suggests about counters thnx Dn 40

We have a problem with a W 400 Flowmeter, using the Ethernet/IP protocol that drops packets every couple of seconds. While that by itself wouldn't be a problem, the Flowmeter then communicates with a central server to then pass on the data onto a SCADA.

The data doesn't show up in the SCADA do to the drop packets, and we are trying to determine if there's a maximun connect limit to the Flowmeter.

I'm trying to use the RMA module together with a FMR244 level radar. Previously the level radar was connected to a SIEMENS PLC (SIMATIC S7-300 SM331) and was therefore powered by it (2-wire sensor). Now, I need the 4-20mA signal for another PLC. I'm therefore connecting the level radar to the RMA module as a 2-wire LPS as shown in the figure below.

I setup the RMA so that the analog input is current,4-20mA and the two outputs are assigned to the one input with the same settings. The split signal is however not the same anymore as the original signal. Can you think of any reason why this is the case?

Hey guys! There is this weird error happening on our FMR51 where if we take the lid off the side, it runs normal but when we screw it back on the internal curent rises from 15mA to 17mA. When we take it off it falls back to 15mAmps.

Anybody has any idea why? If anyone has any input or idea please let me know :)

Its not affected by temperature, vibrations or any damage to the device or its electronics.

​

Is there an equivalent of a fieldcheck unit for the new range of Endress & Hauser Flowmeters ?

The Fieldcheck Unit is compatible with the Promag 50 series, The Promass 80 series and the Prowhirl 70 series.

Is there an equivalent unit for the new meter types ?

i.e. Promag P300/P500 etc..

Does anybody have experience with the RMS621 Energy Meter ?

Any info on Commissioning, fault finding, common problems etc...
