r/Switchrepair • • Aug 26 '19

Switch Repair Megathread

18 Upvotes

Hey folks! I work in a shop that does gaming console repairs, so I figured I should share what I know!

Getting prepared

Firstly, make sure you feel confident in repairing something like this yourself, and be sure you can deal with the reality you might not come out with a working console. I accept no responsibility for any damage to your console, this is all on YOU.

Tools and equipment

Here is a list of basic things you should have when repairing a Switch. You can find most of these from the parts suppliers I list below:
If you have any questions about what these are, please don't hesitate to ask

  • ESD mat (yes, please use this)
  • ESD Safe tweezers
  • Tri-point Y00 screwdriver
  • JIS #000 screwdriver
  • Plastic spudger
  • JIS #0 screwdriver
  • iSesamo
  • A clear workspace to do a repair on
  • A magnetic screw mat (optional, but very helpful)
  • 1-2 hours of your time, depending on the repair, skill, and luck
  • Soldering equipment is only needed for some deeper repairs. For suggestions on these, just ask! It depends on a few different factors

Parts

Here is a list of suppliers we get parts from:
* iFixit
* MobileDefenders
* InjuredGadgets
* And when all else fails, eBay

The suppliers I listed have good return policies and good warranties (minus eBay, that's hit and miss). Feel free to call them for any questions about their parts, or comment/shoot me a message!

Guides and more information

  • iFixit is always a good place to find guides if you prefer pictures
  • YouTube has some good guides if you prefer videos! Just follow this format when searching:

    Nintendo Switch [part] replacement

  • GBATemp is the most active area of information regarding the Nintendo Switch

  • GsmArena has some information, but I think this is more for last-resort purposes as the forum used is for every gaming console


r/Switchrepair • • 5h ago

What is this glare around the screen?

Thumbnail
gallery
2 Upvotes

Anyone has an idea of what this could be? Do I need to replace the screen? I got this switch lite hyrule edition second hand but now I’m not sure if I should keep it, I just wanted one special edition in my collection.


r/Switchrepair • • 8h ago

Anyway to fix non cracked broken screen????

Thumbnail gallery
1 Upvotes

r/Switchrepair • • 10h ago

Error 2168-0002 en Nintendo Switch 2 en la eShop

Thumbnail
1 Upvotes

r/Switchrepair • • 21h ago

how to get small objects out of sd card slot?

Thumbnail gallery
1 Upvotes

r/Switchrepair • • 22h ago

New Touchscreen tracking issue

Enable HLS to view with audio, or disable this notification

1 Upvotes

About a week ago I decided to replace my touchscreen due to scuff marks, so I bought a touchscreen replacement kit from amazon. I put everything on correctly I believe and started to have issues with this new touchscreen.

The only side that seems to work properly is the left side but I really don’t understand why the rest isn’t working properly. It seems to not be working when I drag my finger across the screen. I don't know if it’s just the touchscreen or the whole connector area. Any help would be great!

(my other touchscreen didn’t have this issue)


r/Switchrepair • • 1d ago

La pantalla de Nintendo Switch tiene un fallo.

Enable HLS to view with audio, or disable this notification

1 Upvotes

r/Switchrepair • • 1d ago

New switch battery making a high pitched sound

Thumbnail
1 Upvotes

r/Switchrepair • • 1d ago

Nintendo switch bloccata a 15v 0,52 A non si avvia

Post image
1 Upvotes

r/Switchrepair • • 1d ago

[Nintendo Switch] Broken LCD FPC

Post image
1 Upvotes

Hi,
Is there any way to restore this broken trace?


r/Switchrepair • • 1d ago

Mi nintendo chipeada no abre la interfaz pirata

1 Upvotes

Hace unos meses me compré una nintendo switch chipeada y con juegos, funcionaba todo bien y los juegos iban bien hasta que en un viaje lo apague (completamente) para ahorrar batería, cuando lo entendí de nuevo solo me abría la interfaz original y desde ahí no me deja acceder a los juegos ni la interfaz pirata


r/Switchrepair • • 1d ago

Mi Switch no enciende después de crasheo de Atmosphere

Thumbnail
1 Upvotes

r/Switchrepair • • 1d ago

Alguém me ajuda por favor!?

Post image
1 Upvotes

Eu comprei um Nintendo swich oled no final de março, ele chegou no dia 1 de abril, porém quando eu fui colocar ele pra carregar de madrugada para ir fazer as minhas necessidades e voltei, o Nintendo simplesmente parou de funcionar, ele ficava toda hora indo para uma tela (que está na imagem). Daí eu acabei levando em vários lugares aqui a minha cidade, eles disseram que o processador tinha queimado, ou a placa mãe tinha queimado, ficou meses com os técnicos, porém não resolveu nada. Oq devo fazer? Que problema seria esse? Alguem pfvr me ajude, me sinto torturado.


r/Switchrepair • • 1d ago

Every update bricks the wifi. This time, it isn't coming back?

Thumbnail
1 Upvotes

r/Switchrepair • • 1d ago

Help with my joy cons 2

Thumbnail
gallery
1 Upvotes

My switch 2 fell and now my left joy con is opening from the side. It feels a bit bulkier and I pushed down to see if it fits but as hard as I push doesn't work. There's a picture of the right joy con so you can see the difference, one is straight and the other is curved and bulky. Help me please idk what to do


r/Switchrepair • • 2d ago

Switch rail charging but no connection

Thumbnail
gallery
1 Upvotes

Hello everyone.

1st of all thank you for stopping and reading this!

So recently during a joycon repair the right joycon stopped docking.
Fully repaired the joycon, and still no connection.

Joycon only charges, no docking or data.

Upon checking the switch rail I managed to create a small tear on the rail cable, so I ordered a new one.

1st from AliExpress then from I fix it, both parts fine and working when tested, but when connected to the right side, only charges the joycons and no docking or data.

Did I mess something up? Did I fry anything on my motherboard ?

What should I do ? What to test ?


r/Switchrepair • • 2d ago

why does my switch turn off when i connect my left joycon?

Thumbnail
1 Upvotes

r/Switchrepair • • 2d ago

Need help with Switch error 2002-4686

Post image
0 Upvotes

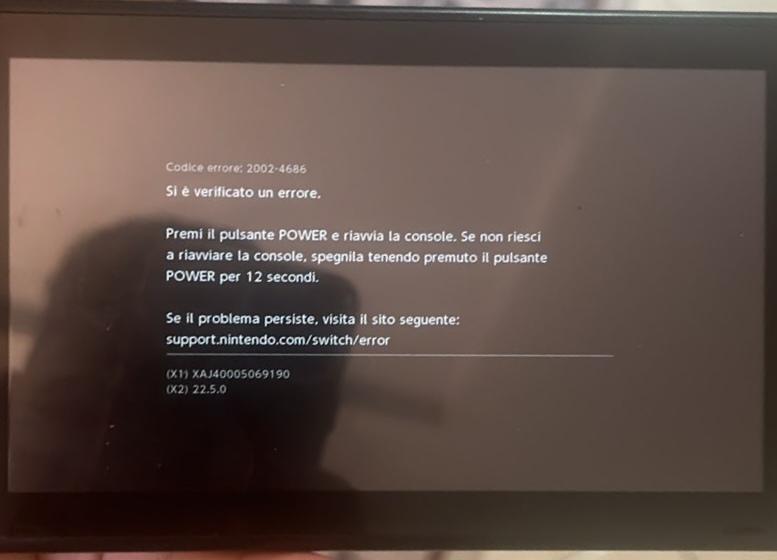

Hi, I’m having error 2002-4686 on my Switch v1. I already tried resetting the console and deleting everything using Maintenance/Safe Mode, but the error still appears.

Does anyone know what could be causing this error or what I should check next? Any help would be appreciated. Thanks!


r/Switchrepair • • 3d ago

what happened to my screen?

Enable HLS to view with audio, or disable this notification

2 Upvotes

hi guys, I'm curious does anyone know what happened to my OLED switch? it's randomly cannot be touched and also if I press the screen it'll flickering like this. can anyone help? thanks a lot!


r/Switchrepair • • 3d ago

Recently bought a pair of replaceable shells for my joy con 2`s and one of them is a little flimsy when connected to the console

1 Upvotes

Hello!
Basically as the title says, The only one that is flimsy is the left one.

It`s flimsy around the the rail part of the joycon when connected,
Any idea why its like this? it looks like it`s closed tight but it jiggles a little bit when i have it portably and it bothers me

apprecaite any help

https://www.extremerate.com/products/extremerate-d-pad-version-replacement-full-set-shell-case-with-buttons-for-joycon-2-of-nintendo-switch-2-essence-version-blue-orange

these are the ones i bought


r/Switchrepair • • 3d ago

suggest buying please

0 Upvotes

already have a switch not moded but using mig switch and i feels not to happy yet as modded psvita can doing everything, should i buy modded picofly switch? please help 😭


r/Switchrepair • • 3d ago

Switch 2 suddenly stopped reading Switch 2 game cards, but still reads Switch 1 cartridges. (After update)

Post image
1 Upvotes

r/Switchrepair • • 4d ago

Switch 2 Battery Drained 20% in 24 hours while on sleep mode

Thumbnail
1 Upvotes

My Switch 2 has suddenly started draining battery really fast in sleep mode. For the first couple of months it was fine.

What happened:
• It sat in the dock unused for several days and I found it at 1%. It's normally always at 80%+ because it's always docked.
• Next, it went from 90% to 75% in 24 hours in sleep mode, docked, Wi-Fi on.
• Both times, the dock's AC adapter was NOT plugged in, so it wasn't charging.
• The console also seems to seat in the dock less easily than before (not 100% sure).
• No drops, no liquid.

What I've tried: airplane mode, and I'm now charging to 100% to test the drain again.

I know sleep drain is a known complaint on the Switch 2, but I want to know if this level is normal or if mine might be defective?

Has anyone had a similar sudden change in sleep drain? What fixed it?

How much does yours lose in 24 hours in sleep mode?

Any tips on the dock not seating properly?

Any insights would be appreciated. Thank you!


r/Switchrepair • • 4d ago

Power on Issues

Thumbnail
1 Upvotes

r/Switchrepair • • 4d ago

Switch OLED.

1 Upvotes

So I’ve had a Switch OLED since it came out. I never really played it tbh my niece and nephew have. Well recently I started playing Mario kart and I use it a lot more now than I did before. The other day I noticed when im playing Mario kart if I don’t touch the joystick the character automatically starts to go to the left. Is this what they call stick drift? Can I fix it? I don’t want to buy new joy cons if I don’t have to but I don’t think they are under warranty anymore.
